Name: JYQD-V7.0 BLDC Motor Driver 12-24VDC 50W with PWM Control
Brand: Changzhou Bextreme Shell Motor Technology Co.,Ltd
SKU: JYQD-V7.0
Price: 3.60 USD
Availability: InStock

MOQ:	1
prezzo:	$3.60-5

Informazioni di dettagli

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Jiangsu, Cina

Marca

Bextremeshell

Numero di modello

JYQD-V7.0

Tensione di ingresso:

12-24VDC

Potenza nominale:

50 W.

Potenza massima:

70W

Corrente massima:

Algoritmo di controllo:

onda quadra

Dimensioni:

45 mm x 32 mm x 10 mm

Controllo della velocità:

PWM/0-5V

Feedback di velocità:

SÌ

Temperatura di lavoro:

-10°C a 60°C

Frequenza PWM:

1K-20kHz

Duty cycle di PWM:

0-100%

Ampiezza PWM:

Distanza della porta di controllo:

2,54 mm

Distanza della porta di potenza:

3.96mm

Tipo di motore:

Motore sensore Hall

Evidenziare:

BLDC motor driver with PWM control

12-24VDC BLDC driver board

50W BLDC motor controller

Descrizione del prodotto

JYQD-V7.0 BLDC Motor Driver

12-24VDC input, max 50W power, with PWM control, Arduino compatible

Product Attributes

Accessory Type	Motor driver
For Use With	BLDC motor

BLDC Motor Driver Specifications

Model No.: JYQD-V7.0
Power Input: 12-24VDC
Rated Power: 50W
Suitability: Hall sensor motor
Max Power: 70W
Max Current: 3A
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Control Algorithms: Square wave
Dimensions: 45mm × 32mm × 10mm
Speed Control: PWM/0-5V
Speed Feedback Signal Output: Yes
Working Temperature: -10℃ to 60℃

BLDC Motor Driver Applications

The JYQD-V7.0 BLDC motor driver board is designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy, making it suitable for various applications.

Common Applications

Electric skateboard

Electric scooter

Electric wheelchair

Hoverboard

Drones

Electric unicycle

Electric Moped

Electric go kart

RC car

Industrial robot

Logistics conveyor belt

Automation equipment

CNC machines

Self-propelled lawn mowers

Consumer electronics

Home appliances

Industrial equipment

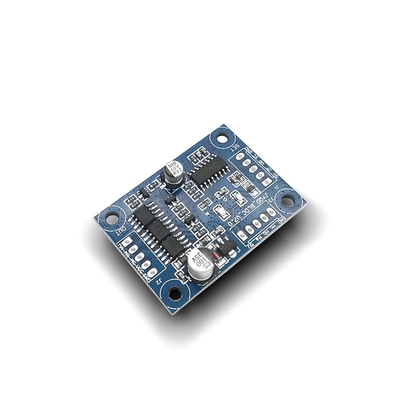

BLDC Motor Driver Appearance

Application Guidelines

Confirm that the voltage and power parameters of the motor do not exceed the specified range.
Applicable to hall brushless DC motor with Hall at 120°. You may need to adjust the Hall line sequence or motor three-phase line sequence for optimal driving effect.
This driver board comes without housing and heatsink. It can drive motors below 50 watt without heatsink but requires normal ventilation.
The 5V output port is only for external potentiometer or switch for speed adjustment, commutation and enabling operation. Do not connect external power equipment.

BLDC Motor Driver Wiring

Control Port

5V: Driver board internal output voltage for external potentiometer or switch
Z/F: Rotating direction control ports (5V=Forward, GND=Reverse)
VR: Speed control port (0.1V-5V analog or PWM input)
SC: Enable port control (5V=Allow operation, GND=Forbid operation)
GND: Ground for driver board internal control

Power Port

MA, MB, MC: Motor phase connections
P+, P-: DC power input

Hall Sensor Port

Ha, Hb, Hc: Hall sensor connections
GND, 5V: Power for Hall sensors

Important Notes:

Use shielded wires if the driver board is more than 50 cm from the motor
Control port distance: 2.54mm, Power port distance: 3.96mm
Ensure proper insulation between driver MOSFET and heatsink/installation plate

BLDC Motor Driver Dimensions

Manufacturing Technique

Packing Information

The BLDC motor driver is well packed in an individual antistatic bag.

Frequently Asked Questions

Lead Time

Sample: 5 days
Mass order: 2-3 weeks

Minimum Order Quantity

1 set for all series products

Warranty

12 months from the date of delivery

Technical Support

1-on-1 service and technical support
